Lantronix Open-Q™ Development Kits
OPEN-Q™ 6490CS and OPEN-Q™ 8550CS
With suitable development kits for its high-performance Open-Q™ SOMs, Lantronix enables the more efficient development of advanced AI, vision, connectivity, and automation applications. The Open-Q™ 6490CS and Open-Q™ 8550CS cover different performance classes, enabling developers to more efficiently implement anything from efficient low-power edge designs to extreme edge computing applications, based on their requirements.
Both Open-Q™ 6490CS and Open-Q™ 8550CS are NDAA and TAA compliant. For the SOMs and development kits, as well as other Open-Q™ products (Open-Q™ 5165RB, Open-Q™ 8250CS), Lantronix also guarantees a lifespan of at least 10 years thanks to a strict bill of materials and extensive quality control, allowing for long-term, reliable and sustainable product development planning with these series.

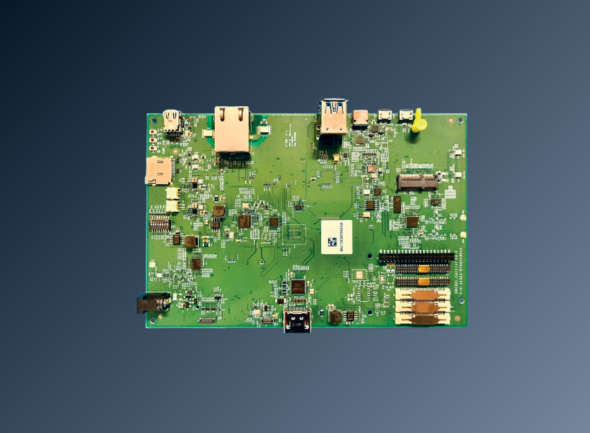

Lantronix Open-Q™ 6490CS SOM and Development Kit
The Lantronix Open-Q™ 6490CS SOM is a powerful, energy-efficient embedded AI computing module based on the Qualcomm Dragonwing™ QCS6490. It is specifically optimized for demanding applications in drones, UAVs, and autonomous robots with real-time perception and edge inference, and supports the parallel processing of AI, vision, navigation, connectivity, and control workloads within strict SWaP requirements.
Key Features of the Lantronix Open-Q™ 6490CS Development Kit
- Based on the Lantronix Open-Q™ 6490CS SOM with Qualcomm Dragonwing™ QCS6490 SoC
- Open-frame carrier board for quick evaluation with access to available I/O
- Multi-camera support via MIPI-CSI for EO, IR, and depth sensing
- Advanced camera features with up to 5x IFE
- High-speed interfaces and connectivity options for rapid prototyping
- Memory and storage support: up to 16 GB LPDDR5, 64 GB eMMC, support for UFS and NVMe
- On-device AI up to 12.5 TOPS plus dedicated computer vision engine
- OS support: Linux (Yocto) as well as Android 13
- Extended temperature range: -25 to +85 °C

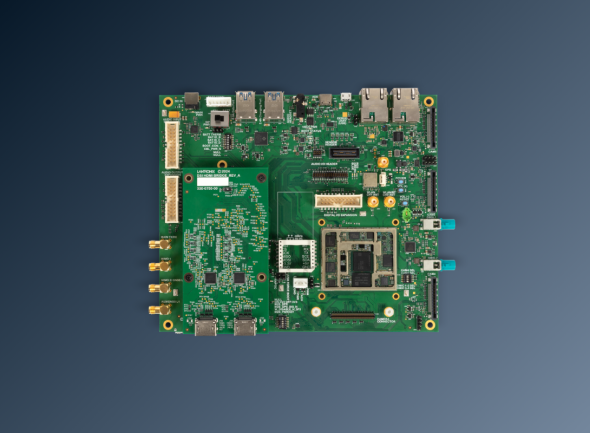

LANTRONIX OPEN-Q™ 8550CS SOM And DEVELOPMENT KIT
The Lantronix Open-Q™ 8550CS SOM is a premium edge AI platform based on the Qualcomm Dragonwing™ QCS8550, designed to meet extreme edge computing requirements in applications such as multi-camera systems, edge AI gateways, video collaboration, retail, cloud gaming, industrial drones, and autonomous mobile robots.
Thanks to 4nm technology and 48 INT8 and 12 FP16 TOPs, the platform delivers powerful AI and ML computing performance while maintaining low power consumption, achieving the maximum heterogeneous compute performance of the 8th generation AI engine, with up to ten times the performance of the previous generation. Enterprise connectivity with pre-certified Wi-Fi 7 up to 5.8 Gbit/s, versatile MIPI camera and display interfaces, and other high-speed I/O also enable the efficient integration of demanding vision, AI, security, and audio workloads on a single module.
Key Features of the Open-Q™ 8550CS Development Kit
- Based on the Open-Q™ 8550CS SOM with Qualcomm Dragonwing™ QCS8550 SOC
- Open-frame carrier board with access to all available I/O, plus accessories for rapid evaluation
- Standard M.2 and MikroBUS sockets
- Camera interfaces: C-PHY and D-PHY MIPI CSI as well as GMSL camera interface
- Display interfaces: Dual MIPI DSI, HDMI, and DisplayPort
- Audio: Audio CODEC and DMICs
- Network: Gigabit Ethernet interfaces
- Sensor interfaces for evaluation of the Qualcomm Sensing Hub
- Digital I/O and CAN
- Connectors for measuring power consumption
- OS support: Android 13 and Yocto Linux Kirkstone
DEVELOP YOUR EDGE AI AND VISION APPLICATIONS WITH ATLANTIK ELEKTRONIK AND LANTRONIX
As a longtime partner of Lantronix, we support you in selecting, evaluating, and implementing partial and complete solutions with powerful Lantronix Open-Q™ platforms and development kits, from hardware integration to efficient application development for edge AI and vision workloads.
Contact us now for individual consultation regarding your specific use case.
Further information about our range of solutions for autonomous systems as well as AGVs and robotics can also be found here on our website.
