Windows on Snapdragon™
Developing the Future of Mobile Computing
Atlantik Elektronik helps to create powerful, innovative, and stylish devices and experiences for Windows® systems running on ARM and Qualcomm® Snapdragon™.
Windows on Snapdragon™ is a mobile computing platform uniting the CPU, GPU, NPU, and modem into one system-on-chip solution. In collaboration with Microsoft® Windows®, Qualcomm Technologies has adapted Windows® 11 to fully utilize the potential of Snapdragon™ processors and enable particularly fast, responsive, connected, and energy-efficient devices.
This integration allows Microsoft® Copilot+ PCs and other Windows® devices to offer seamless performance, AI-enhanced user experiences, extended battery efficiency, lightning-fast connectivity, and intelligent security features.
Leveraging Qualcomm’s Snapdragon™ platforms, engineered to deliver significant advancements in performance, battery life, connectivity, size, and sensor integration, and combining it with a comprehensive range of selected hardware, software, and development tools, Atlantik Elektronik can support the development of the next generation of mobile Windows® devices.
For more information on how Windows on Snapdragon™ can elevate the development of your device or experience, please contact our Atlantik Elektronik experts here.
Recommended Products
Qualcomm® Snapdragon™ with Windows® Support
As an authorized Qualcomm Technologies distributor with many years of experience and expertise in the integration and optimization of hardware and software, the Atlantik Elektronik team can support customers individually with services along the entire value chain.

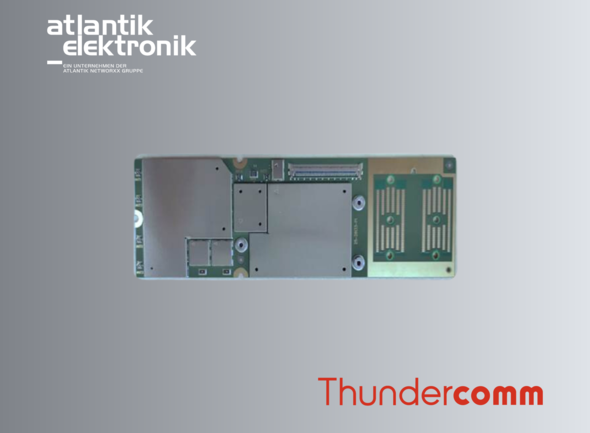

CT7280 Module
Windows 11 Support
Key Features:
- High-tier 5G SoC processor with integrated LTE/5G modem
- Always On, Always Connected
- Superior PC experience brings innovation & invention
| SoC | Qualcomm® Snapdragon c7+ Gen3 Kryo CPU 4x Gold @ 2.4GHz 4x Silver @ 1.8GHz |
| OS | Supports Windows 11 |
| RAM | 8 GB LPDDR5 |
| Storage | 256 GB UFS3.1 |
| Display | FHD+, eDP1.4 |
| Connectivity | Sub-6 GHz 5G NR + Cat18 LTE DC-HSPA+, CDMA, WCDMA, and GSM |
| WLAN | Wi-Fi 6/IEEE802.11ax/ac/a/b/g/n, Bluetooth®v5.0 |
| Camera | 27+27+27/64MP |
| Audio | Supported |
| Peripherals | x1 USB3.1 Gen1 x1 USB2.0 |
| Certification | CE*/FCC*/RED*/TELEC*/NCC*/Anatel*/BIS*/IC*/RCM* including selected carrier certifications |

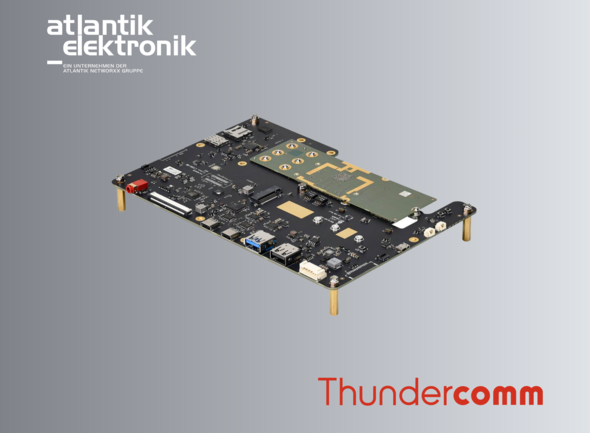

CT7280 Development Kit
Windows 11 Support
Snapdragon computing platforms power Windows on Snapdragon® devices - Always On, Always Connected PC, tablets and IoT devices designed for productivity, efficiency and connectivity.
| Category | SC7280 Development Kit |
| Platform | Qualcomm SC7280 |
| Camera Interfaces | Spectra ISP 3 x 22MP 5 x CSI |
| Display Interfaces | Primary: FHD+ @ 144 DSI or eDP1.4 External:4K @ 60 DSC v1.2DP over USB3 |
| Audio Interfaces | 3× DMICS 1× Headset 1× I2S |
| Keypad Interfaces | IT8987 |
| USB Interfaces | 1x USB3.1 Gen 1 1x USB2.0 |
| PCIe Interfaces | 2xPCIe Gen3 (3 lanes) |
| WLAN/BT Interfaces | WLAN 2×2 |
| Connectivity | 5G Sub6G+LTE(Option) |
| Power Interfaces | DP Over TypeC |
| Other Interfaces | 1× I2C 1× SPI 1× UART 1× JTAG |
| Dimensions | 200 mm×135 mm |
| OS Support | Windows 11 |
| Windows 11 IOT |
Industrial Tablet
Reference Design
This industrial tablet is designed for rugged use - withstanding shock, vibration and extreme temperatures. Both Android and Windows operating systems can be offered, as well as various storage options.
Specifications:
- Size: 13.3"
- Protection class: IP65
- Display resolution: 1920 x 1080 (FHD)
- Brightness 260cd/m² (800cd/m² option)
- Technology: IPS (all viewing angle)
- Touch: PCAP touch, 10points
- Surface hardness: ≥6H
- Light transmittance: ≥85%
- Camera: 5M pixel Autofocus
- Connectivity: WiFi, Bluetooth, USB, Micro HDMI in-/ output
- Loudspeaker: 3020 waterproofing, 8Ω 2W
- Outer Dimension: 351 (H) x 236(V) x 28.7 (H) mm
- Operating system: Android, Windows
- Interfaces: USB type-C*2/ headset port /micro SD/micro SIM.
- Storage: Various / selectable
- Input voltage: DC12V/ 2A
- Vibration resistant: 50-500Hz, 1.5G, 0.15mm (peak-to-peak value)
- Shock resistant: 10G (11ms)

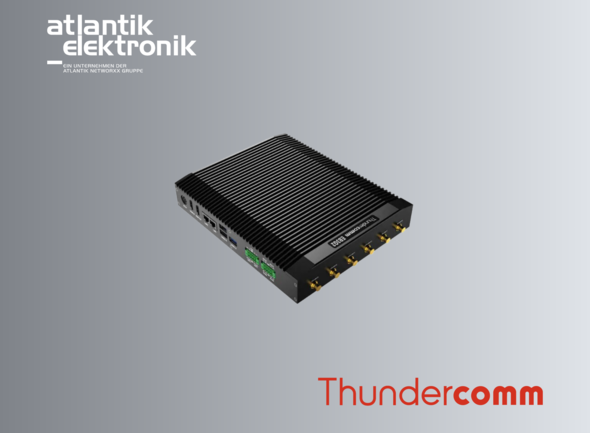

EB3 Gen2
Edge AI Station
EB3Gen2 Edge AI Station is a high-performance AI edge computing device. It adopts an industrial-grade fanless design. Embedded with the built-in edge software OSware. Edge, it provides customers with device management, video management, AI algorithm configuration, application upgrades, edge-cloud collaboration, customization, and multi-cloud connectivity.
- Premium performance with high AI computing power and multiple channel decoding
- Rich interfaces, multiple type of network for Edge computing scenarios
- Industrial design for harsh conditions
- Deeply optimized streaming media AI analysis service
- Visual configuration of AI algorithms and applications
- Edge cloud collaboration, large-scale deployment, one-stop management
