Lantronix Open-Q™ 8550CS SOM and Development Kit
Facilitated evaluation of Qualcomm Dragonwing™ QCS8550 SOC
Based on the high-performing Qualcomm Dragonwing™ QCS8550 system on chip (SOC), the new Open-Q™ 8550CS System on Module (SOM) and the Open-Q™ 8550CS SOM Development Kit by Lantronix allow for a more streamlined and efficient development process of e.g. industrial drones, smart camera systems, Edge AI gateways, cloud gaming, and autonomous mobile robots.

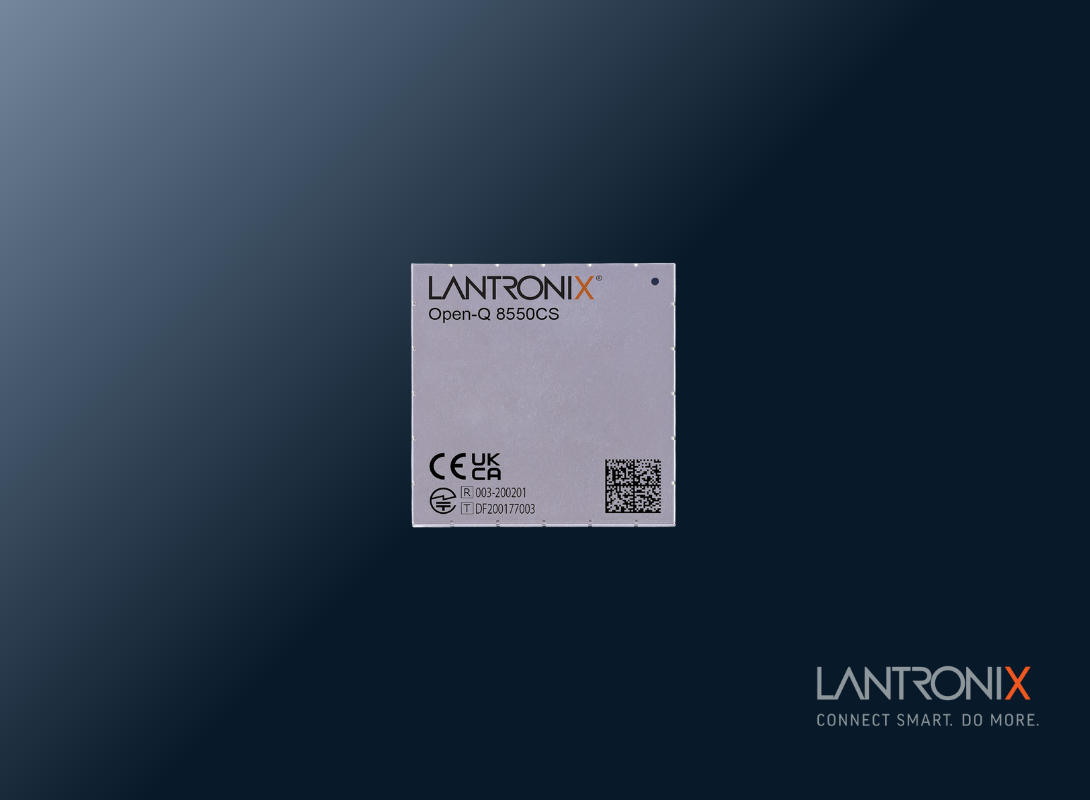

Lantronix Open-Q™ 8550CS System on Module (SOM)
With the Open-Q™ 8550CS, Lantronix provides a System on Module (SOM) with a premium performance level of 48 INT8, 12 FP16 TOPs fit extreme edge computing applications including Edge devices, Edge servers, and Edge AI boxes. The low power consumption with a 4nm process, maximum heterogeneous computing, an 8th-generation AI Engine delivering 10x performance over the previous generation, enterprise-level connectivity with Wi-Fi 7 supporting up to 5.8Gbps, and best-in-class performance across compute processing, camera, AI, security, and audio.
Key Features des Open-Q™ 8550CS SOM
- Qualcomm Dragonwing™ QCS8550 SOC
- Up to 16GB LPDDR5 RAM + 128GB UFS Flash
- Android™ 13 and Linux Yocto Kirkstone
- On-device AI Engine with Qualcomm Hexagon™ Tensor Processor (HTP)
- Pre-certified Wi-Fi 7 2x2 MU-MIMO and Bluetooth 5.2 capable
- Multiple MIPI camera and display ports
- Multiple high speed connectivity options
- 54 x 45 x 3.61 MM LGA
- TAA and NDAA compliant (at least 10 years of longevity for Open-Q 8550CS)

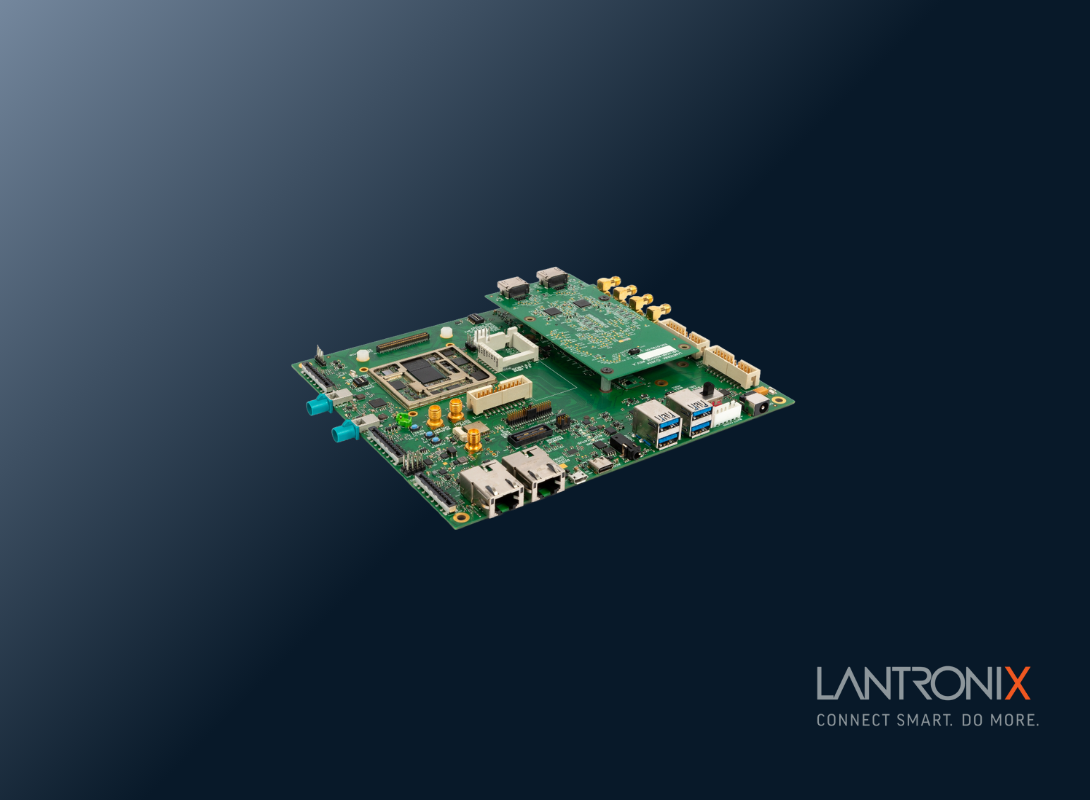

Lantronix Open-Q™ 8550CS SOM Development Kit
Additionally, Lantronix offers the Open-Q™ 8550CS Development Kit, which facilitates the evaluation of the key features of the Qualcomm® Dragonwing™ QCS8550, such as the Low Power AI subsystem with a dedicated DSP and AI accelerator supporting always-on audio, sensors, contextual data streams, and an always-on camera.
The kit supports the evaluation of C-PHY and D-PHY MIPI CSI and GMSL cameras, dual MIPI DSI, DisplayPort, audio, sensors, GNSS, Gigabit Ethernet and many more features.
The development kit is designed around the Open-Q™ 8550CS SOM and additionally an open-frame carrier board exposing all the available I/O as well as a variety of accessories.
Key Features of the Open-Q™ 8550CS Development Kit
- Powered by Open-Q 8550CS SOM
- Standard M.2 and MikroBUS sockets
- C-PHY and D-PHY MIPI camera interfaces, GMSL camera interface
- MIPI DSI, HDMI interfaces and Display Port
- Audio CODEC and DMICs
- Gigabit Ethernet interfaces
- Sensor interfaces to evaluate Qualcomm® Sensing Hub
- Digital I/O, CAN
- Connectors to measure power consumption
- Android™ 13 and Yocto Linux Kirkstone
As a long-time partner of the manufacturer Lantronix, we can provide the development of partial and complete solutions with the high-performing products from the Lantronix portfolio. Benefit now from our successful collaboration with Lantronix and utilize our expertise and experience for realizing your custom project.
Find both the Open-Q™ 8550CS and the Open-Q™ 8550CS Development Kit in our ATE-Store.
